Description

Blipper-Quickshifter PQ8, Ducati Single – Double Ignition

PQ8 Quickshifter for two cylinder Ducati models with both single and double ignition coils.

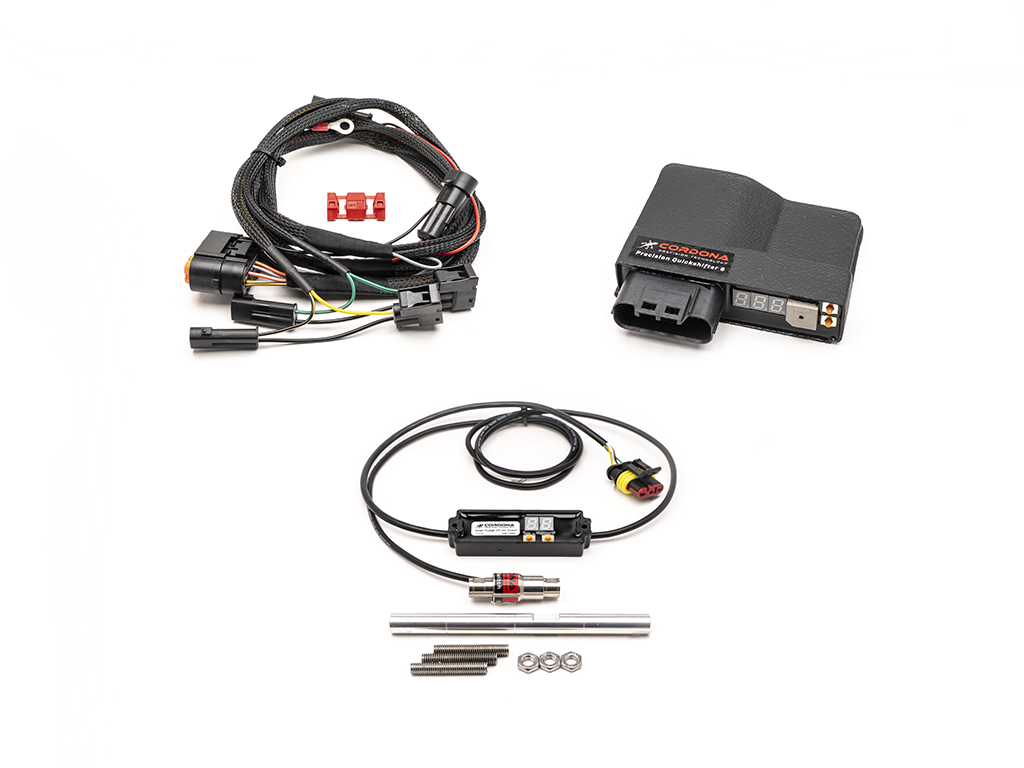

This kit includes

• PQ8 ECU
• GP SG Switch including M6 size strain gauge sensor
• PQ8 wiring harness (item 217H) with two pairs of connectors to the ignition coils
• M6 nut and stud kit
• * 132 mm aluminium rod with left and right M6 threads
• Velcro tape
• Cordona stickers

* The 132 mm aluminium rod is standard for this kit.

The PQ8 Quickshifter system includes

PQ8 ECU

• Two channel quickshifter ECU for  2, 3 or 4 cylinder motorcycles engines.
• Adjustable kill time between 40-80ms
• Smooth shift function with 50% longer kill time for 2nd channel gives a reduction in gear box chock free start up phase.
• Compus shift function with longer killtimes for lower rpm’s.

GP SG Switch

Cordona use strain gauge technology which gives a very consistent and distinct shift performance.

The GP SG switch is based on the technology platform we have used in Moto3 World Championship together with KTM Factory Moto3 and Honda Factory bikes. For years.

• Digital switch with a Cordona M6 or M8 size strain gauge sensor.
• Adjustable shift force
• Configurable shift direction, push or pull for upshift
• Configurable shift loop type; commonly open or closed loop.
• Optional adjustable kill time 10-99ms, default 150ms
• Optional analogue output for shift force logging (Factory Moto3)
• IP68 class

PQ8 wiring harness and installation

• Wiring harness connecting the PQ8 system to bike ignition coils or fuel injectors.
• An installation kit with aluminium rod and stainless steel nut and stud screw kit are included.
