Description
MWR Performance Airfilter for the 701 Supermoto → ’16/’24
Filter fits also : KTM 690 SMCR & GASGAS SM700

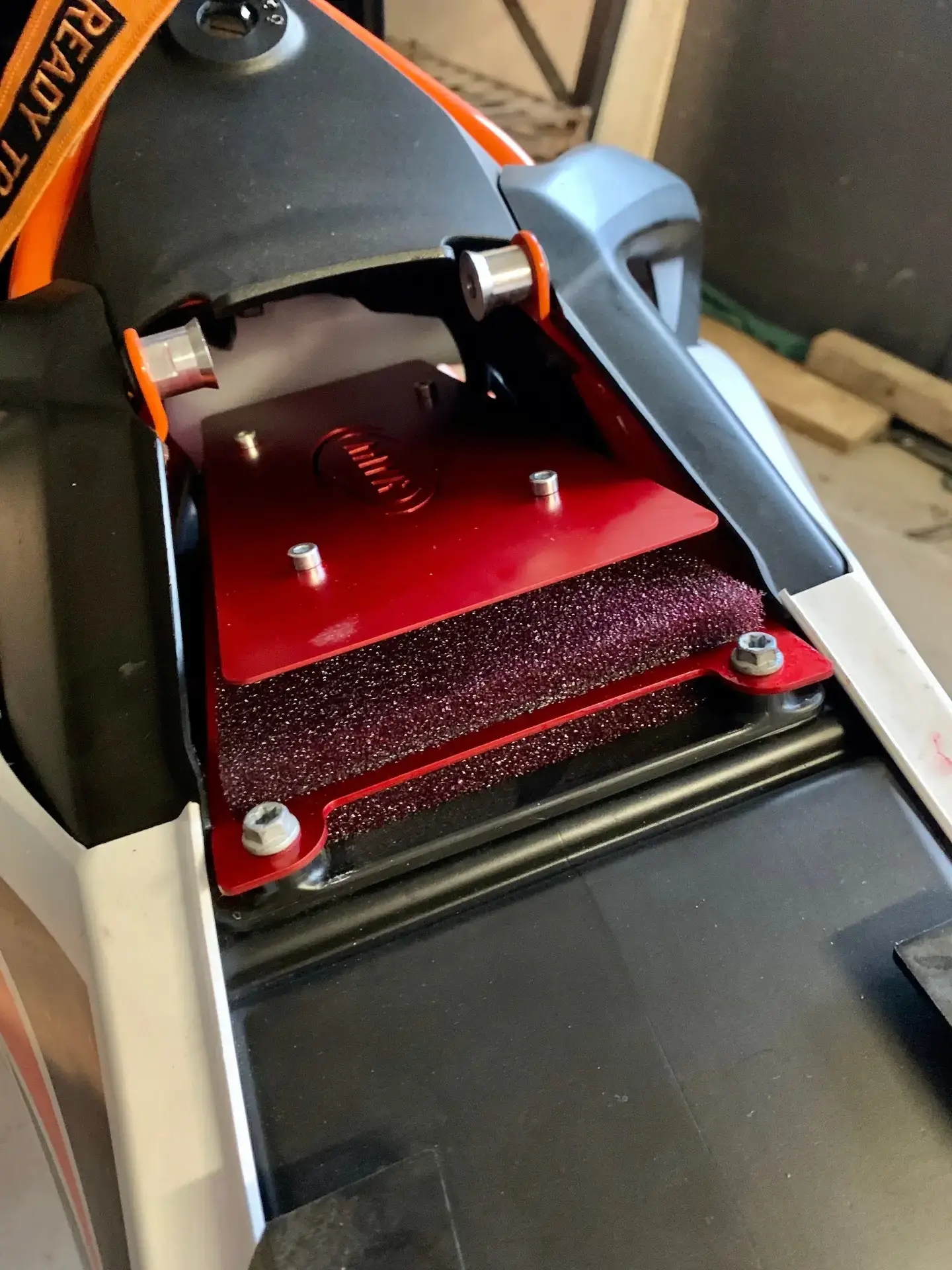

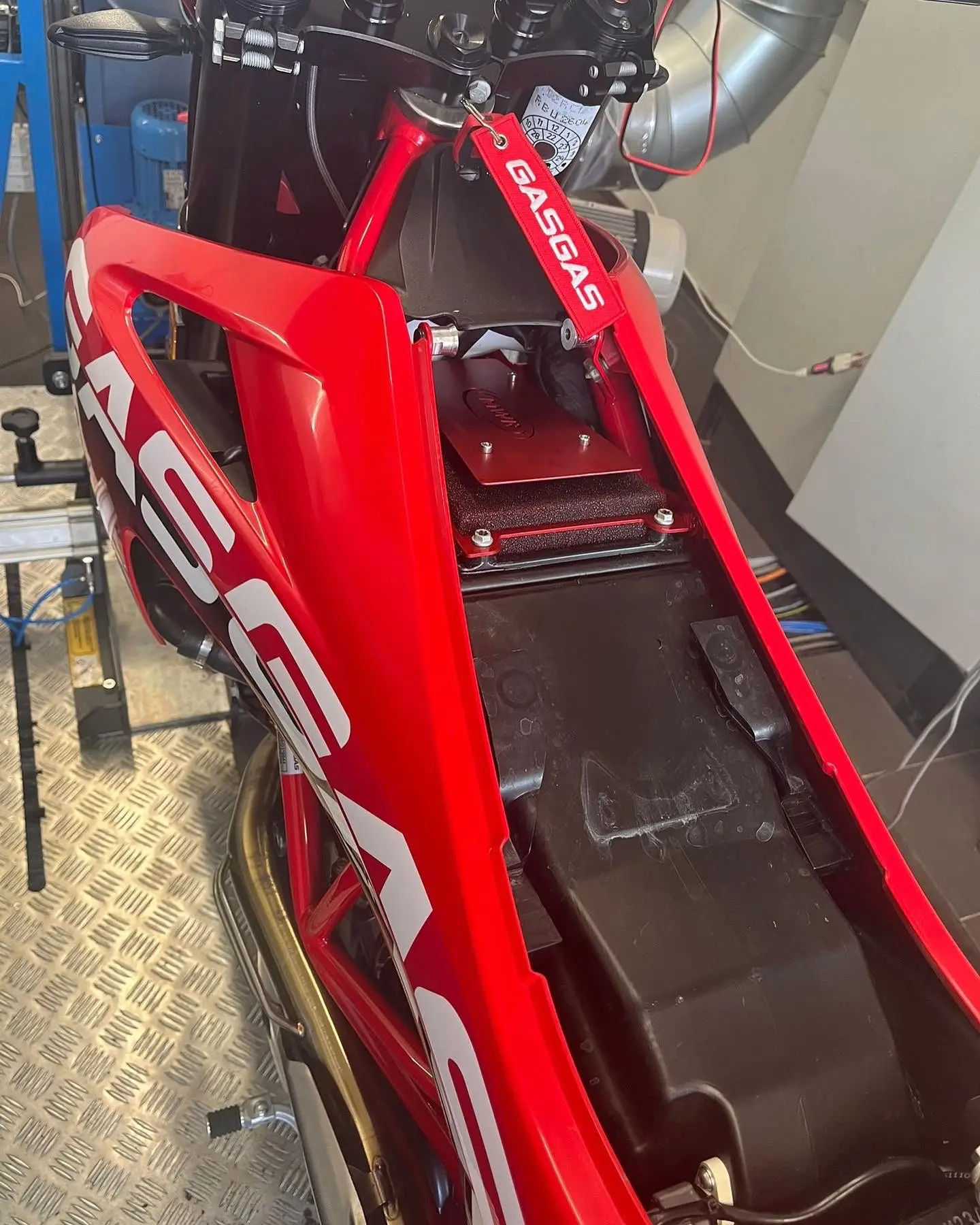

To instal this filter you need to remove original upper airbox cover or KTM Performance cover , filter will be installed instead of the original cover or Performance cover (see foto’s)
Splitter Plate has different function , it protects water dropping onto the filter
___________________________________________________
The MWR Performance Airfilter = excellent performance and max. protection . Not a copy of the original filter , always searching for solutions regarding performance , protection or fitment , some models therefore deviate from the original.
Tuning like all other sports filters
The difference between our roadbike and racebike filters
The foam material of our racing filters have a much more open structure compared to the roadfilters foam material which makes the duration of the maintenance much shorter , the protection is at the same level as our roadbike filters but for a shorter time , therefore the maintenance is much more intensive. Maintenance frequency for racebike filters are after every two race weekends. Therefore are racebike filters are NOT suitable for roadbikes
Our roadbike filters have a recommended maintenance frequency of once a year …. regardless the milage .
Even when you have ridden 50 miles that year stick to the guidelines , priority for the filter is that the foam must not dry out , keep it “wet” from oil
In countries around the Equator with high temperature and high humidity , the frequence must shortened to twice a year . Racebike filter can stay with the normal frequency of maintenance
Only MWR Biodegradable filter oil and Biodegradable filters cleaner may be used to protect the filter also from backfire.
Guidelines for Maintenance the MWR Airfilters
How to clean your MWR filter
1) Immerse the filter in MWR filtercleaner for 30 minutes
2) Wash the filter in hot water with dishwatersoap
3) rinse the filter with clear water untill all soap is out of the filter
4) Let the filter dry
5) When the filter is completly dry spray the filter on both sides with oil and massage the oil gently in the foam , make sure there is no dry place left .When you have a normal can with oil hold the filter almost vertical and gently drop oil onto the filter on both sides , then massage the oil gently into the foam
MWR maintenance products
MWR-001 : MWR maintenance set 250ml
MWR-002 : MWR maintenance set 250ml spray can
MWR-003 : 1Ltr MWR airfilter oil
MWR-004 : 1Ltr MWR airfilter cleaner
