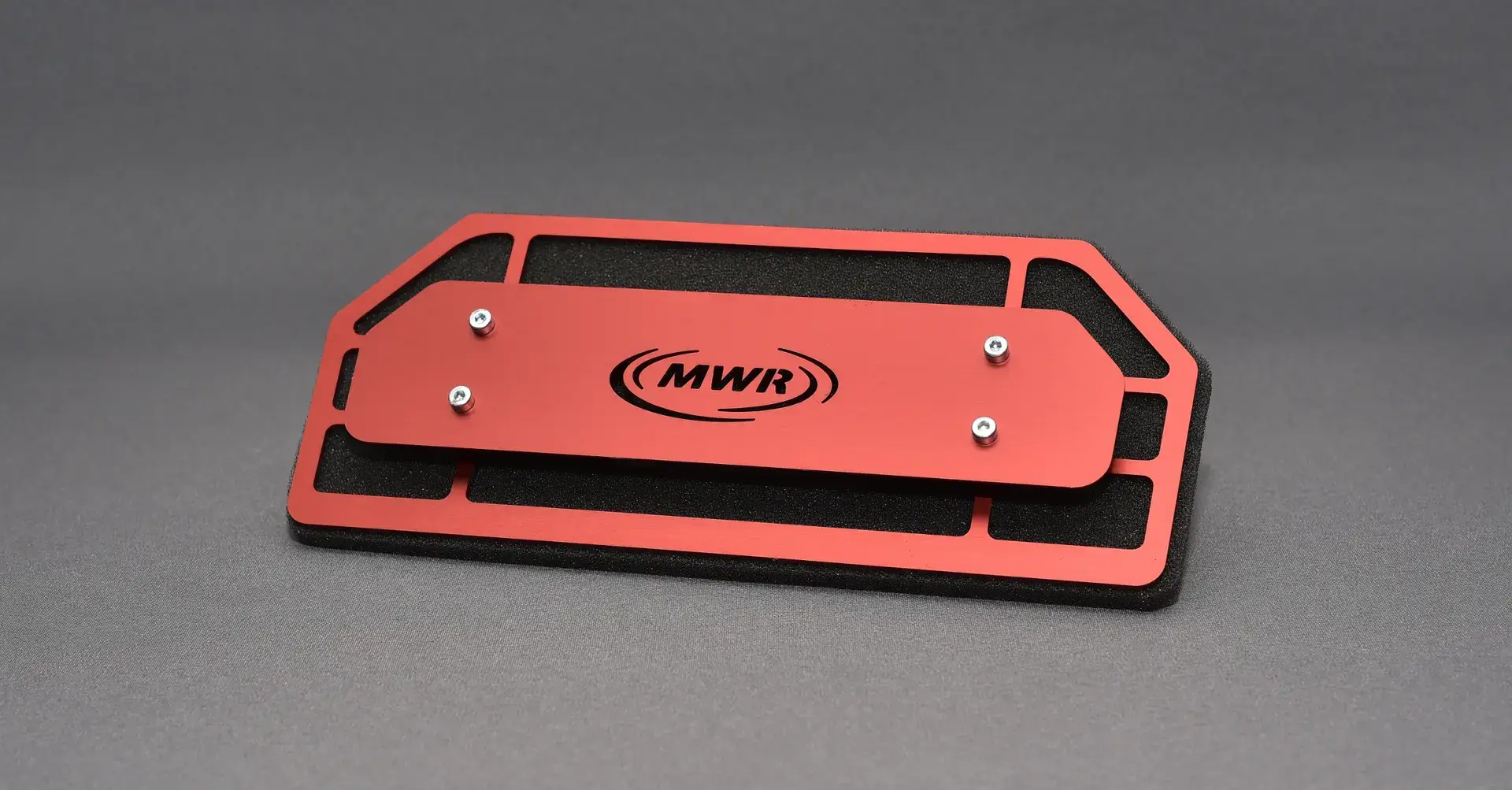

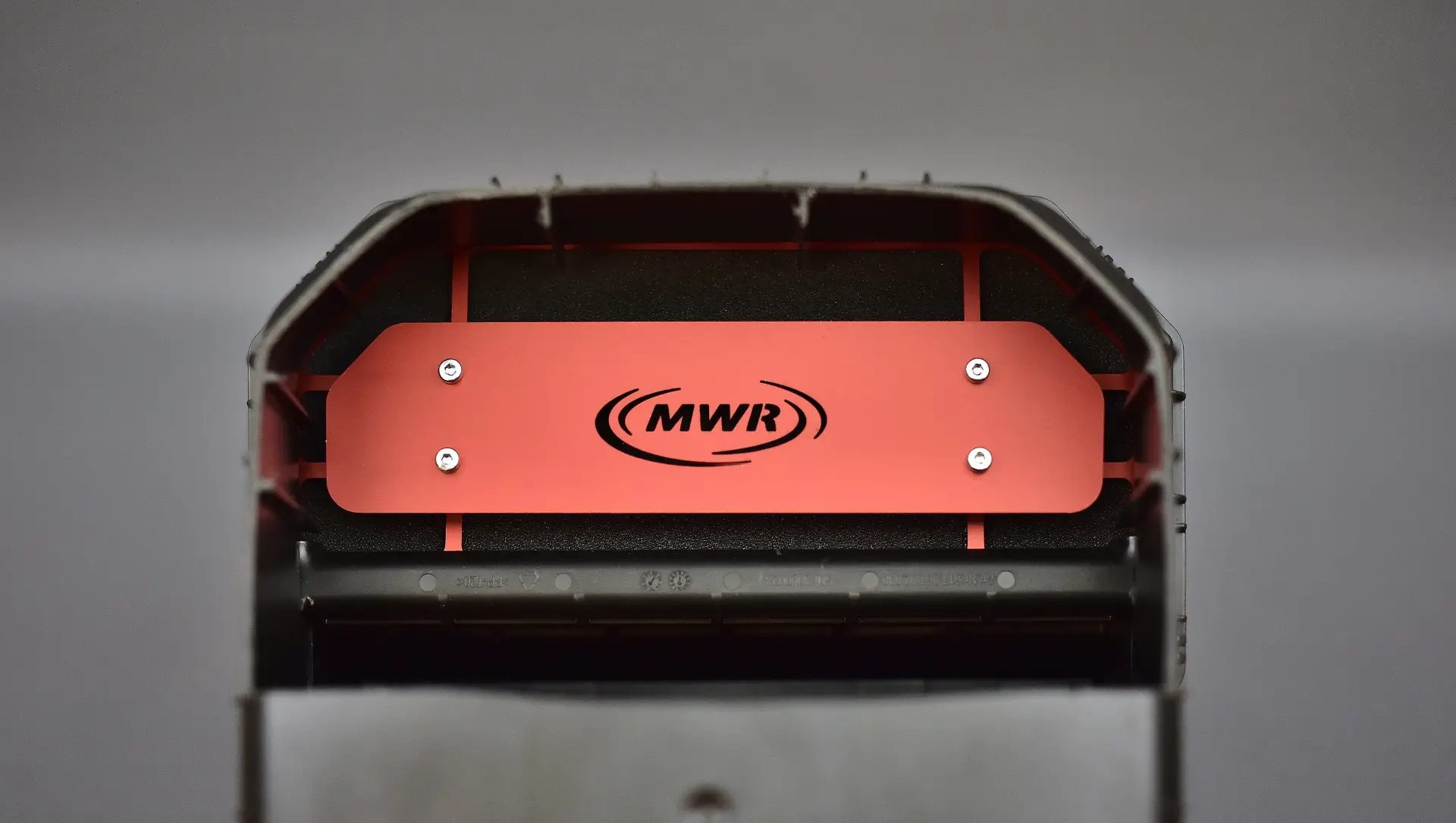

MWR Performance Airfilter for :
1290 SuperDuke R → ’20/’24
1290 SuperDuke R EVO → ’22/’24

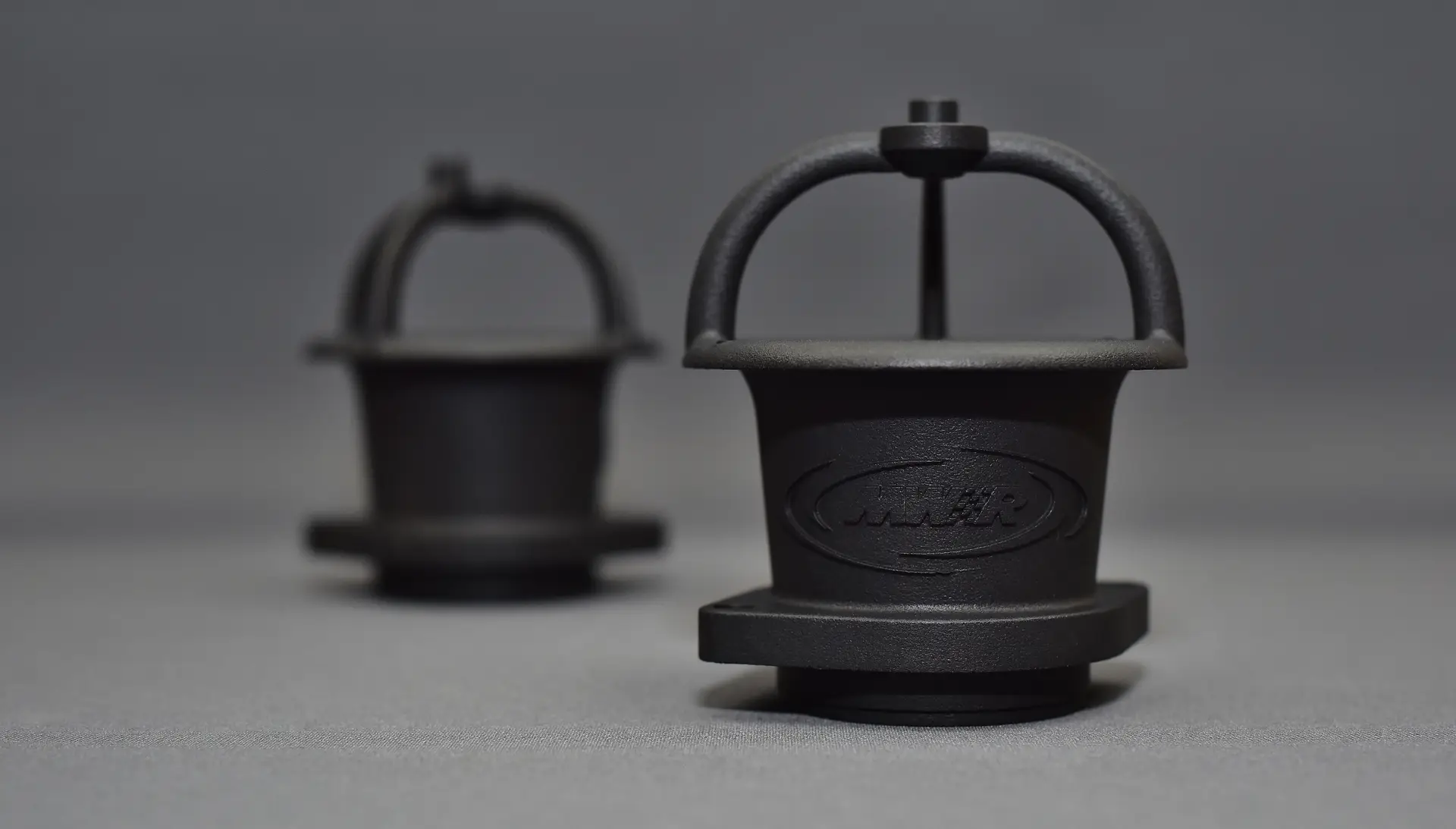

MWR developed for this bike also High Performance Velocity Stacks (see foto) Part.nr.: MWR-VS-550
No modifications needed
___________________________________________________
The MWR High Efficient Airfilter , for road and race bikes .The goal for the revolutionary design is to reduce the inlet noise and yet more power delivery . This design has shown a reduction of up to 8 db compared to the other sportsbikes filters .
Unlike all other sports filters the “HE’ filter creates a much better , equal airflow over all cylinders , means you need to adapt fueling of all cylinders separately to achieve maximum effect of the “HE” filter . Concerns all twins , V-twins , three , four , and V4 engines.
Remapping the ECU or Fuel Control Module is recommended
The difference between our roadbike and racebike filters
The foam material of our racing filters have a much more open structure compared to the roadfilters foam material which makes the duration of the maintenance much shorter , the protection is at the same level as our roadbike filters but for a shorter time , therefore the maintenance is much more intensive. Maintenance frequency for racebike filters are after every two race weekends. Therefore are racebike filters are NOT suitable for roadbikes
Our roadbike filters have a recommended maintenance frequency of once a year …. regardless the milage .
Even when you have ridden 50 miles that year stick to the guidelines , priority for the filter is that the foam must not dry out , keep it “wet” from oil
In countries around the Equator with high temperature and high humidity , the frequence must shortened to twice a year . Racebike filter can stay with the normal frequency of maintenance
Only MWR Biodegradable filter oil and Biodegradable filters cleaner may be used to protect the filter also from backfire.
Guidelines for Maintenance the MWR Airfilters
How to clean your MWR filter
1) Immerse the filter in MWR filter cleaner for 30 minutes
2) Wash the filter in hot water with dishwater soap
3) rinse the filter with clear water until all soap is out of the filter
4) Let the filter dry
5) When the filter is completely dry spray the filter on both sides with oil and massage the oil gently in the foam , make sure there is no dry place left .When you have a normal can with oil hold the filter almost vertical and gently drop oil onto the filter on both sides , then massage the oil gently into the foam
