Description

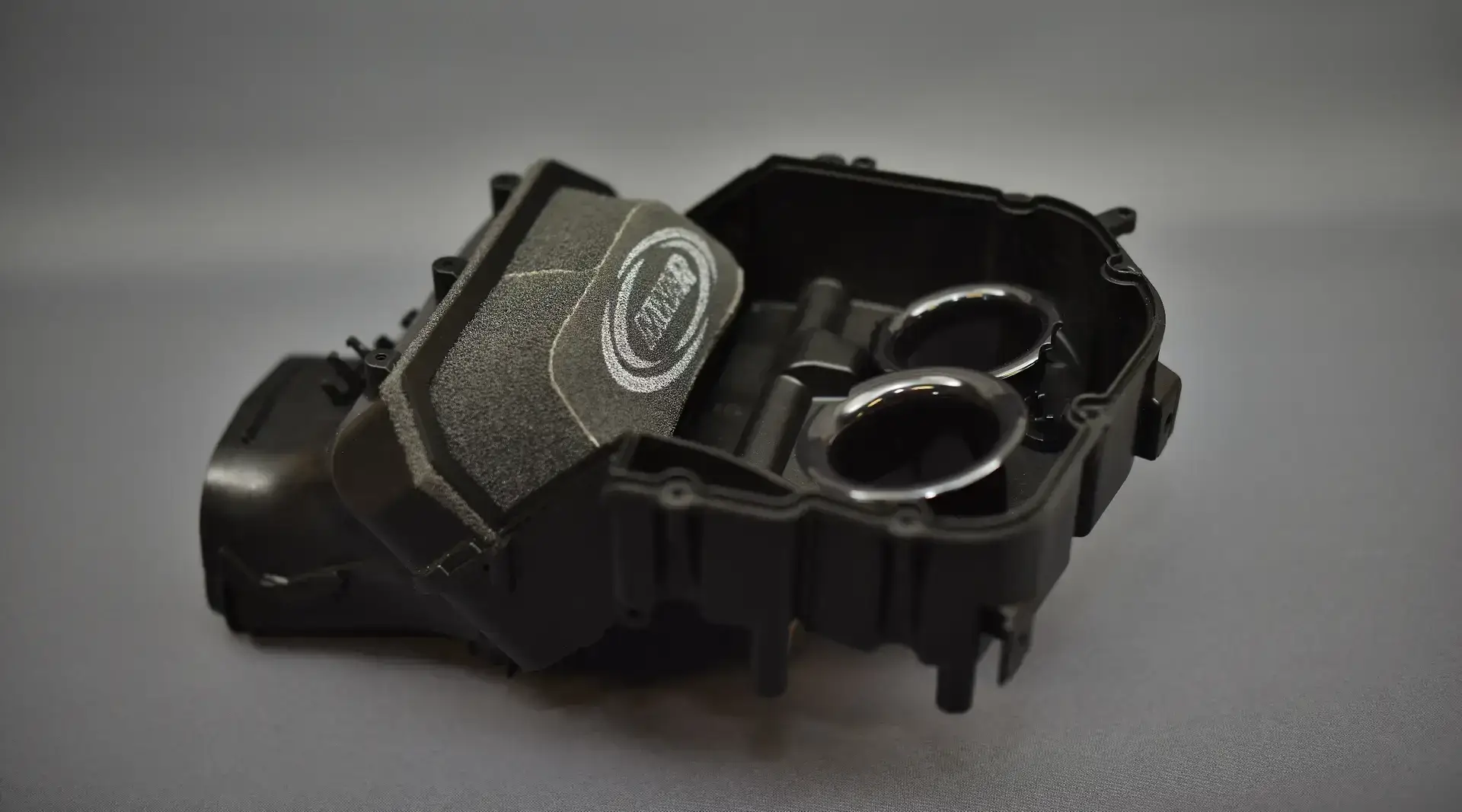

Race / Track Airfilter for
RS660
Tuono660
installation like original filter , no modifications needed
___________________________________________________
The “WSBK” filter is developed in cooperation with KRT , MV Agusta Reparto Corse and BSB Superbike teams with a new style very exclusive customized airfilter for race & track bike only . The shape of the filter is adapted to the airbox and made a big as possible which increases the filtersurfase enormously . One of the reasons we can’t make it for every kind of bike . We were able to increase the filter surface from 50 to 100% , depending on the bike . A bigger surface = less restriction = more power & better protection.
These new style “WSBK” filters are build from two different foam materials , placed on a conscious place to create equal airflow as much as possible over all cylinders . The filter are hand cut and hand glewed.
Unlike all other sports filters the “WSBK” filter creates a much better , equal airflow over all cylinders , means you need to adapt fueling of all cylinders separately to achieve maximum effect of the “HE” filter. Concerns all twins , V-twins , three , four , and V4 engines
Remapping the ECU or Fuel Control Module is highly recommended
___________________________________________________
MWR developed for the Tuono 660 & RS660 High Performance Velocity Stacks (see foto’s) ….. Part.nr.: MWR-VS-010
The difference between our roadbike and racebike filters
The foam material of our racing filters have a much more open structure compared to the roadfilters foam material which makes the duration of the maintenance much shorter , the protection is at the same level as our roadbike filters but for a shorter time , therefore the maintenance is much more intensive. Maintenance frequency for racebike filters are after every two race weekends. Therefore are racebike filters are NOT suitable for roadbikes
Our roadbike filters have a recommended maintenance frequency of once a year …. regardless the milage .
Even when you have ridden 50 miles that year stick to the guidelines , priority for the filter is that the foam must not dry out , keep it “wet” from oil
In countries around the Equator with high temperature and high humidity , the frequence must shortened to twice a year . Racebike filter can stay with the normal frequency of maintenance
Only MWR Biodegradable filter oil and Biodegradable filters cleaner may be used to protect the filter also from backfire.
Guidelines for Maintainance the MWR Airfilters
How to clean your MWR filter
1) Immerse the filter in MWR filtercleaner for 30 minutes
2) Wash the filter in hot water with dishwatersoap
3) rinse the filter with clear water untill all soap is out of the filter
4) Let the filter dry
5) When the filter is completly dry spray the filter on both sides with oil and massage the oil gently in the foam , make sure there is no dry place left .When you have a normal can with oil hold the filter almost vertical and gently drop oil onto the filter on both sides , then massage the oil gently into the foam
MWR maintenance products
MWR-001 : MWR maintenance set 250ml
MWR-002 : MWR maintenance set 250ml spray can
MWR-003 : 1Ltr MWR airfilter oil
MWR-004 : 1Ltr MWR airfilter cleaner
